Nural

  Fitting Positionfor cylinder 1Fitting Positionfor cylinder 2Height [mm]69,75Cylinder Bore [mm]81,00SurfaceHard AnodizedMachinedwith cut-out for oil jetBolt Ø [mm]26Compression Height...

Length [mm] 67,000Cylinder Bore [mm] 82.50 STD + 0.50 oversizeBolt Ø [mm] 26Component Number 08-306707-00Compression Height [mm] 44,920Bolt length [mm] 69Recess Depth 1 [mm] 1,800Oversize [mm] 0,50 ...

Cylinder Bore [mm] (Ø) 87.0 mmValve Recess Depth 1 (VT) 1.05 mmLength [mm] (L) 74.85 mmValve Recess Depth 2 (VT) 1.25 mmCompression height (KH) 44.85 mmValve Recess Diameter 2 37.0 mmValve Recess...

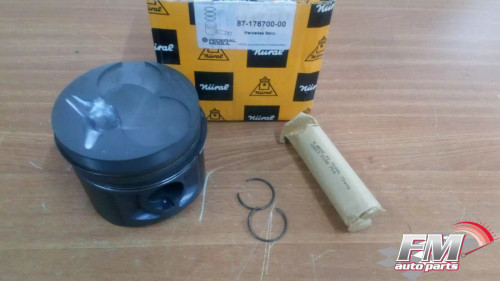

PistonLength [mm] 79,650Cylinder Bore [mm] 91,00Bolt Ø [mm] 26Supplementary Article/Info 2 with piston ring carrierComponent Number 08-176700-00Production Number 09105H/09113CCompression Height [mm]...
