1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00 View Front

1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00

€76,00
€76,00
Skip to product information
1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00 View Front

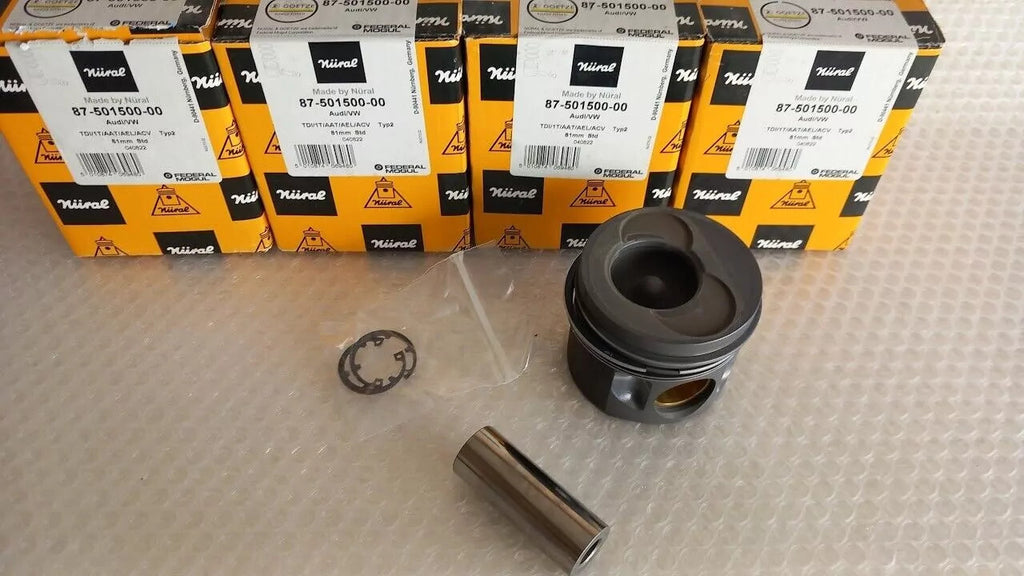

  • 1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00 View Front

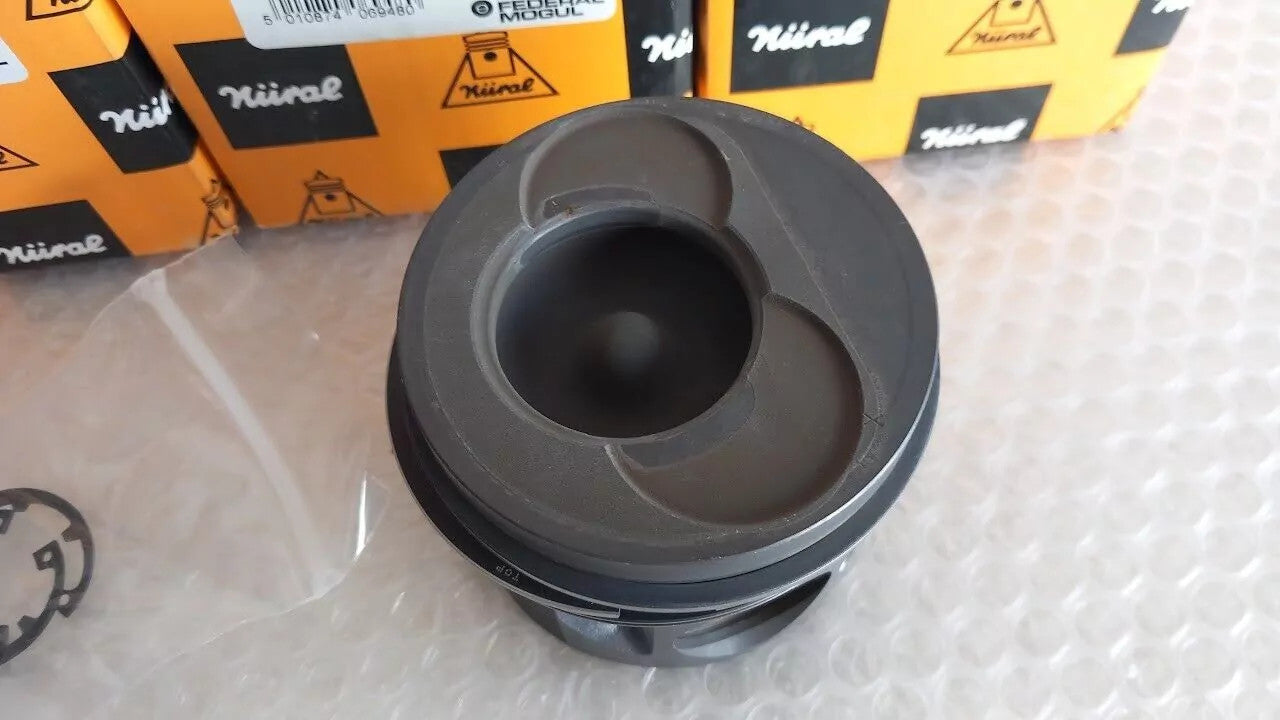

  • 1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00 View Rear

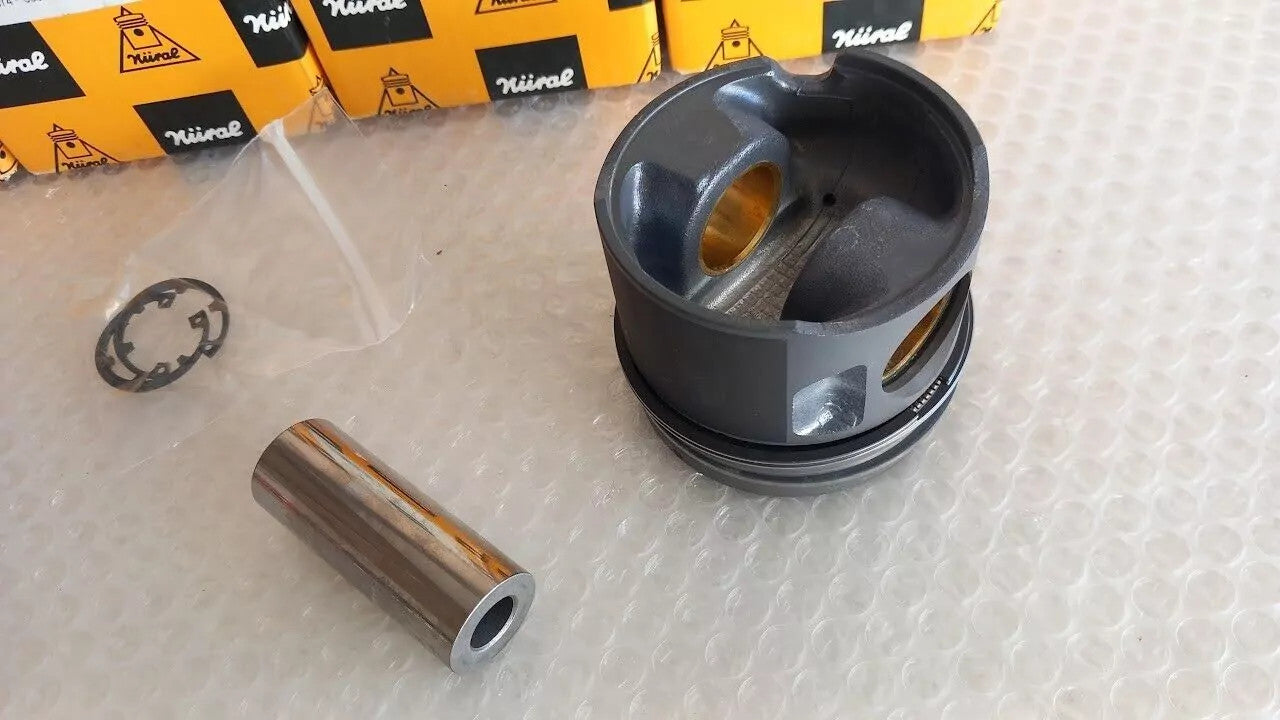

  • 1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00 View Right
  • 1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00 View Front
  • 1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00 View Rear
  • 1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00 View Right
1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00

1x Piston fits VW LT 28-35 28-46 Transporter 81mm Bore STD 87-501500-00

€76,00
€76,00
Brand: Nural
Condition: new
MPN: 87-501500-00
Interchanges: 0304800 | 99742700 | 074107065AA | 074107103AA
Fitting Position for cylinder 1
Fitting Position for cylinder 2
Height [mm] 69,75
Cylinder Bore [mm] 81,00
Surface Hard Anodized
Machined with cut-out for oil jet
Bolt Ø [mm] 26
Compression Height [mm] 45,750
Recess Diameter [mm] 39,600
Bolt length [mm] 68
Recess Depth 1 [mm] 17,200
Valve pocket depth 1 [mm] 1,350
Standard Size [STD]
Piston Clearance [mm] 50
MAKE VARIANT ENGINE
VW CALIFORNIA T4 Camper (7DJ, 7DK, 70J) [09/90 - 08/04] Diesel 2.5 TDI 65KW 88HP [05/98 - 04/03]
VW CALIFORNIA T4 Camper (7DJ, 7DK, 70J) [09/90 - 08/04] Diesel 2.5 TDI 75KW 102HP [05/98 - 04/02]
VW CALIFORNIA T4 Camper (7DJ, 7DK, 70J) [09/90 - 08/04] Diesel 2.5 TDI 111KW 151HP [07/99 - 04/03]
VW LT 28-35 II Bus (2DB, 2DE, 2DK) [04/96 - 07/06] Diesel 2.5 SDI 55KW 75HP [07/96 - 07/06]
VW LT 28-35 II Bus (2DB, 2DE, 2DK) [04/96 - 07/06] Diesel 2.5 TDI 75KW 102HP [05/96 - 08/99]
VW LT 28-35 II Bus (2DB, 2DE, 2DK) [04/96 - 07/06] Diesel 2.5 TDI 70KW 95HP [05/01 - 07/06]
VW LT 28-35 II Bus (2DB, 2DE, 2DK) [04/96 - 07/06] Diesel 2.5 TDI 61KW 83HP [05/01 - 07/06]
VW LT 28-35 II Bus (2DB, 2DE, 2DK) [04/96 - 07/06] Diesel 2.5 TDI 66KW 90HP [05/99 - 07/06]
VW LT 28-35 II Bus (2DB, 2DE, 2DK) [04/96 - 07/06] Diesel 2.5 TDI 80KW 109HP [05/99 - 07/06]
VW LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) [04/96 - 07/06] Diesel 2.5 SDI 55KW 75HP [09/96 - 07/06]
VW LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) [04/96 - 07/06] Diesel 2.5 TDI 80KW 109HP [05/99 - 07/06]
VW LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) [04/96 - 07/06] Diesel 2.5 TDI 70KW 95HP [05/01 - 07/06]
VW LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) [04/96 - 07/06] Diesel 2.5 TDI 61KW 83HP [05/01 - 07/06]
VW LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) [04/96 - 07/06] Diesel 2.5 TDI 75KW 102HP [06/96 - 08/99]
VW LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) [04/96 - 07/06] Diesel 2.5 SDI 55KW 75HP [09/96 - 07/06]
VW LT 28-46 II Van (2DA, 2DD, 2DH) [04/96 - 07/06] Diesel 2.5 TDI 75KW 102HP [05/96 - 08/99]
VW LT 28-46 II Van (2DA, 2DD, 2DH) [04/96 - 07/06] Diesel 2.5 TDI 66KW 90HP [05/99 - 07/06]
VW LT 28-46 II Van (2DA, 2DD, 2DH) [04/96 - 07/06] Diesel 2.5 TDI 70KW 95HP [05/01 - 07/06]
VW LT 28-46 II Van (2DA, 2DD, 2DH) [04/96 - 07/06] Diesel 2.5 TDI 61KW 83HP [05/01 - 07/06]
VW LT 28-46 II Van (2DA, 2DD, 2DH) [04/96 - 07/06] Diesel 2.5 TDI 80KW 109HP [05/99 - 07/06]
VW LT 28-46 II Van (2DA, 2DD, 2DH) [04/96 - 07/06] Diesel 2.5 SDI 55KW 75HP [09/96 - 07/06]
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) [09/90 - 08/04] Diesel 2.5 TDI 75KW 102HP [09/95 - 04/03]
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) [09/90 - 08/04] Diesel 2.5 TDI Syncro 75KW 102HP [01/96 - 04/03]
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) [09/90 - 08/04] Diesel 2.5 TDI 111KW 151HP [05/98 - 04/03]
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) [09/90 - 08/04] Diesel 2.5 TDI 65KW 88HP [05/98 - 04/03]
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D [07/90 - 04/03] Diesel 2.5 TDI 65KW 88HP [05/98 - 04/03]
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D [07/90 - 04/03] Diesel 2.5 TDI 75KW 102HP [09/95 - 04/03]
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D [07/90 - 04/03] Diesel 2.5 TDI Syncro 75KW 102HP [05/98 - 04/03]
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) [07/90 - 04/03] Diesel 2.5 TDI 75KW 102HP [09/95 - 04/03]
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) [07/90 - 04/03] Diesel 2.5 TDI 65KW 88HP [12/98 - 04/03]
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) [07/90 - 04/03] Diesel 2.5 TDI Syncro 75KW 102HP [09/95 - 04/03]
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) [07/90 - 04/03] Diesel 2.5 TDI 111KW 151HP [09/00 - 04/03]
