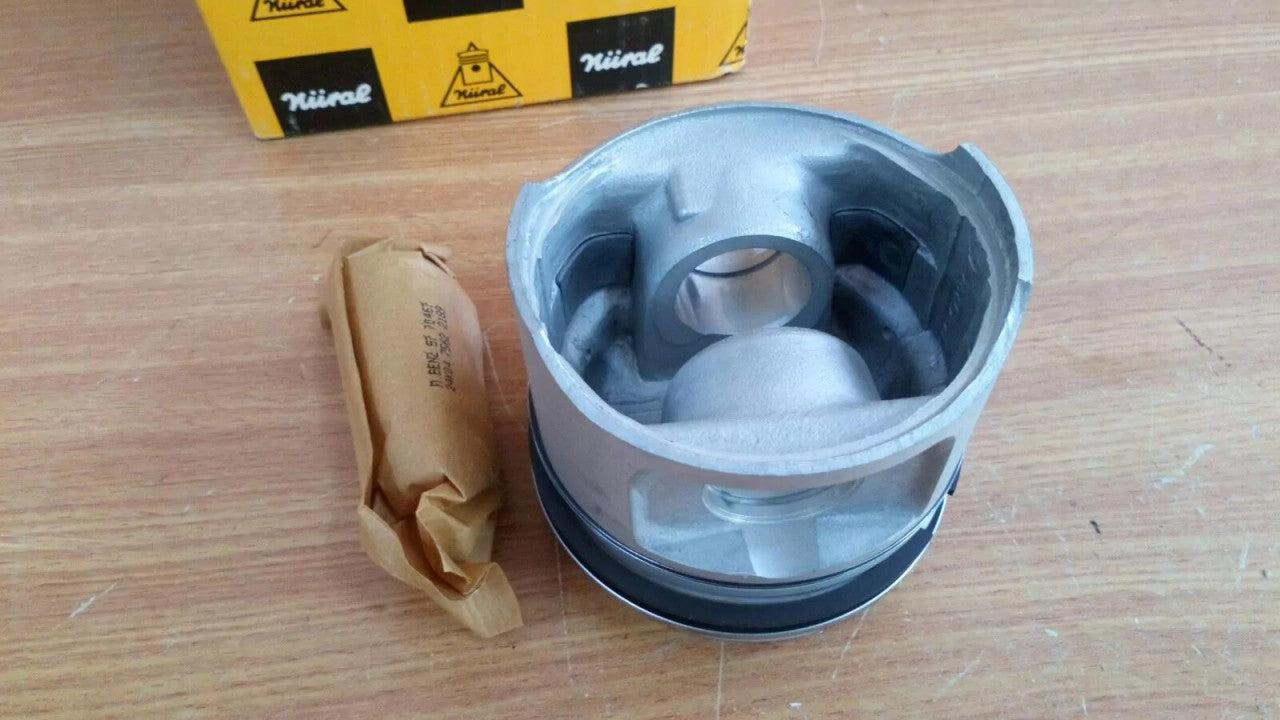

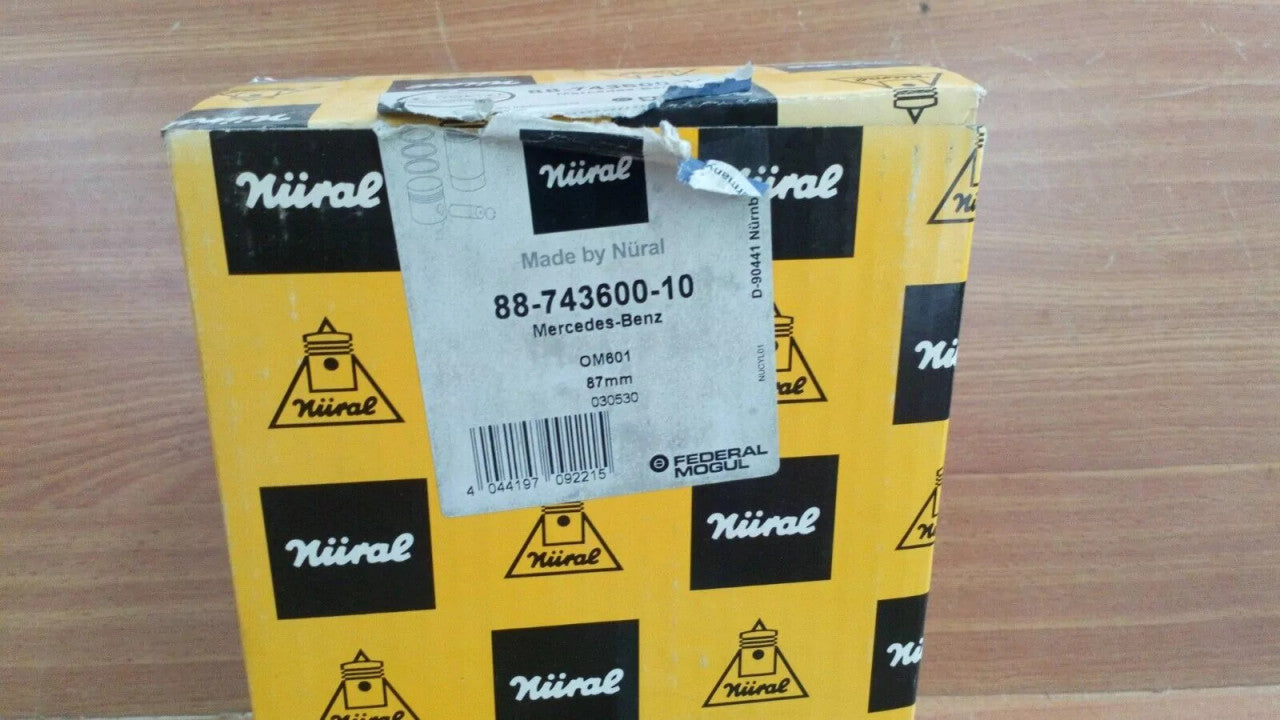

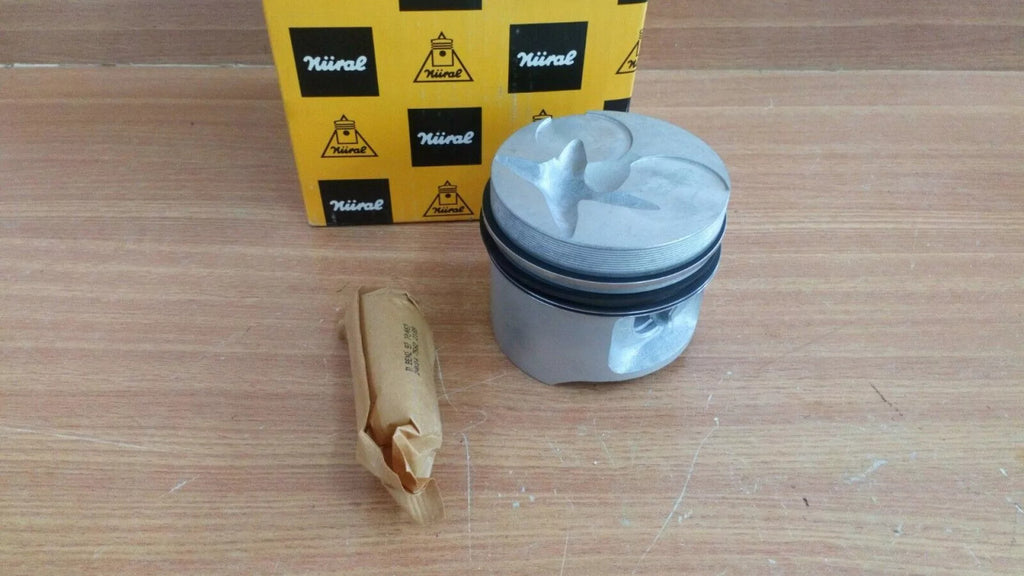

4x Pistons fits Mercedes 190 W201 OM601 87mm Bore STD 88-743600-10

Cylinder Bore [mm] (Ø) 87.0 mm
Valve Recess Depth 1 (VT) 1.05 mm
Length [mm] (L) 74.85 mm
Valve Recess Depth 2 (VT) 1.25 mm
Compression height (KH) 44.85 mm
Valve Recess Diameter 2 37.0 mm
Valve Recess Diameter 1 40.0 mm
Recess Volume 6.6 cm³
Combustion Chamber Depth (MT) 9.05 mm
Top land height [mm] (F) 12.8 mm
Combustion chamber offset (MV) 19.0 mm
Distance between bosses (AA) 22.15 mm
Pin O.D. (BoØ) 26.0 mm
Pin I.D. 14.0 mm
Pin Length (BoL) 55.0 mm
Surface Graphite coated
Material M124
Ferrostan false
Casting Number 87 V 89
Ring Carrier (RT) RT
Cooling gallery (KK) no
Recess for oil cooling nozzle (AK) no
Piston Skirt Clearance 0.04 mm
